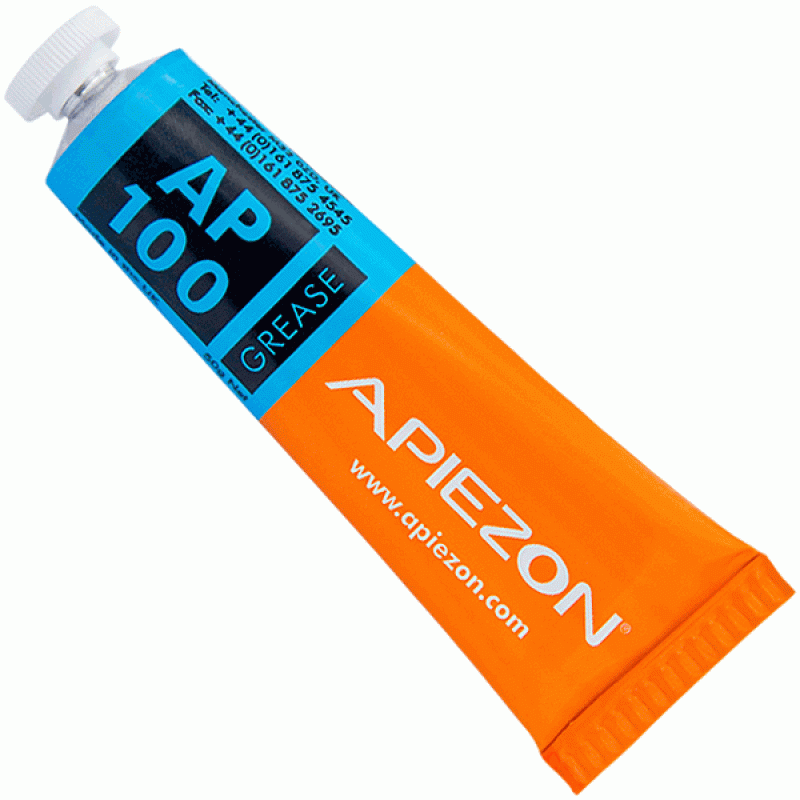

Apiezon AP-100 Ultra High Vacuum Lubrication Grease
- Brand: APIRZON
- Product Code: 131310101
- Availability: In Stock
$250.00
- Ex Tax: $250.00
Apiezon® AP100 Ultra high vacuum lubricating grease:
Apiezon® AP100 is a hydrocarbon lubricating grease for use within ultra high vacuum (UHV) systems for extremely low vapor pressures. AP100 grease is formed from a blend of low vapor pressure petroleum and polytetrafluoroethylene (PTFE). The high levels of lubricity from the Apiezon® AP100 grease is caused from its PTFE component that allows for eight times more lubrication than conventional petroleum-based greases. Apiezon® AP100 offers protection against abrasion and corrosion in high load applications. Apiezon® AP100 is resistant to the “creep” phenomenon that describes the travel of grease away from the area application and into adjacent surfaces where contamination can occur.
Apiezon AP100 Grease is a silicone-free ultra high vacuum lubricating grease which:
- has anti-seize properties, making it an effective protector and lubricant in ultra-high vacuums
- exhibits extremely high levels of lubricity
- demonstrates an extremely low vapour pressure of 7 x 10-11 Torr at 20°C
- is recommended for use at ambient temperatures
- does not suffer from contamination problems associated with silicone based greases such as 'creep' or 'carry over'
- is easy to clean and remove using hot water and an aqueous glassware detergent, hydrocarbon or chlorinated solvents
Applications of Apiezon AP100:
The unique properties of Apiezon AP100 lubricating vacuum grease mean it is frequently used to protect stepping motors and gearboxes from corrosion and abrasion, particularly when they are subjected to high load conditions. AP100 is also used to prevent seizure in stopcocks, taps and small metal fastenings.
The creep resistance of Apiezon AP100 benefits scientific and semiconductor users alike. AP100 helps to increase the accuracy of analytical techniques and improve yields in semiconductor manufacture by contamination avoidance. In addition, AP100 is used for surface coating applications where silicone contamination can lead to poor surface adhesion and incomplete coating defects.
Removal:
Apiezon® AP100 grease is removed most easily by wiping with a soft clean cloth. Any additional residues may be washed with hot water (>50°C) with an aqueous glassware detergent.
Specifications Table
| Vapor Pressure (Torr) | @20°C: 7 x 10-11 |
| Specific Gravity | 1.042 (g/cc) |
| Melting Point | 42-52°C |
| Temperature Range | 10-30 (°C) |
| Lubricity 4 Ball Test | 450 (kg) |
| Outgassing Characteristics (ASTM .E595-93) |
TML: <1% CVCM: <0.1% |
